CE/ISO Certified Large Freight Elevator Lifting Platform Hydraulic Pallet Cargo Lift
Product key attributes
| Parameter | Specification |
| Product Name | Hydraulic Guide Rail Lift |
| Lifting Speed | 6m/min |
| Door Type | Manual/Automatic |
| Entrance | Front/Through/90 Degree |
| Certification | CE/ISO |
What is the Hydraulic Guide Rail Lift?
A guide rail type lifting cargo elevator is a hydraulic lifting machine that eschews the scissor structure. It’s designed to transport goods between floors, finding application in industrial plants, restaurants, and dining establishments with two or three levels. It’s an excellent choice for locations where pit digging isn’t possible, and it eliminates the need for upper suspension points. Available in multiple forms—such as single-column, double-column, and four-column models—it ensures smooth operation, simple and reliable handling, and cost-effective, hassle-free goods transport.
What are the Benefits of a Hydraulic Guide Rail Lift?
1.Designed with a compact yet stable structure, it adapts effortlessly to high-frequency, continuous operations, thriving in busy work environments.
2.Lifting is smooth and consistent, ideal for moving heavy-tonnage goods gently. A hydraulic system with overload safety features is integrated to ensure safe operation.
3.Its compact form and simple exterior make maintenance and use flexible and hassle-free, streamlining daily operations.
4.Equipped with a high-quality pumping station group, it operates with low noise and offers an extended service life, balancing performance and longevity.
5.A broad range of optional accessories enables full customization, ensuring all customer needs are comprehensively met.
6.It runs cleanly and without pollution, aiding in the preservation of a healthy environment.
Products model and parameter series of the Hydraulic Guide Rail lift.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model | Rated load (kg) | Lifting stroke (mm) | Lowering height (mm) | Table size (mm) | Lifting time | Motor power (kw) |
| DSL1-3 | 1000 | 3000 | 100 | 2000×1800 | 6m/min | 3 |
| DSL1-12 | 1000 | 12000 | 100 | 2500×2000 | 6m/min | 3 |
| DSL2-4 | 2000 | 4000 | 150 | 2000×1800 | 6m/min | 4 |
| DSL2-10 | 2000 | 10000 | 200 | 3000×3500 | 6m/min | 4 |
| DSL3-5 | 3000 | 5000 | 150 | 3000×1800 | 6m/min | 5.5 |
| DSL3-8 | 3000 | 8000 | 150 | 2000×1700 | 6m/min | 5.5 |
| DSL4-5 | 4000 | 5000 | 250 | 3000×4000 | 6m/min | 7.5 |
| DSL4-10 | 4000 | 10000 | 150 | 5000×3000 | 6m/min | 7.5 |
| DSL5-6 | 5000 | 6000 | 400 | 5800×3000 | 6m/min | 11 |
| DSL10-15 | 10000 | 15000 | 400 | 7000×5000 | 6m/min | 18.5 |
| DSL15-9 | 15000 | 9000 | 800 | 8000×4000 | 6m/min | 30 |
| DSL15-10 | 15000 | 10000 | 800 | 9000×4500 | 6m/min | 30 |

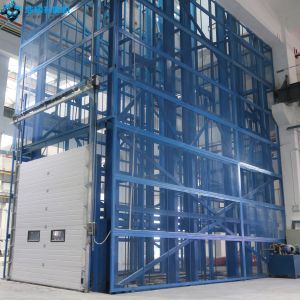

What does the Hydraulic Guide Rail lift look like?
What is the name of our company and where we are?
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility. Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.
Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
