Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

Name: Customized 500kg20000kg Hydraulic Elevator Large Capacity 6M High Fourfold Door For Freight Transport
Brand: HAOXIANG BRAND
Price: 2300 USD

Buy cheap Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport product

Brand Name : HAOXIANG BRAND

Model Number : DSL5-6

Certification : CE/ISO

Place of Origin : GUANGDONG,CHINA

MOQ : 1 unit

Price : USD2300- USD6980 / UNIT

Payment Terms : T/T

Supply Ability : 1500 UNITS PER YEAR

Delivery Time : 7-15 working days

Packaging Details : Naked packaging

Safety Features : Emergency Stop, Overload Protection, Safety Brake

Lifting Height : Up to 50 meters,Customizable

Table Size : 2000*2100mm

Application : Warehouse, Factory, Distribution Center

Warranty : 1 year

Type : Cargo Lifts

Contact Now

Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

Product Description

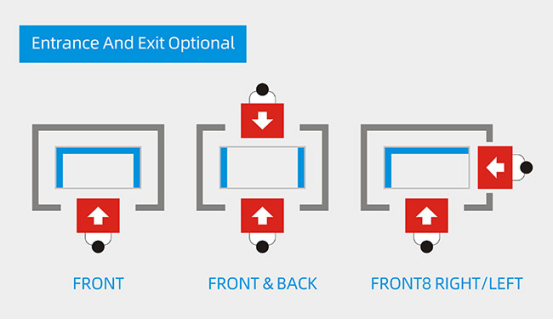

Commercial material lifts offer a practical solution for moving goods across different floors, and they work just as well for hotels, logistics centers, auto repair shops, and hypermarkets. The key feature here is total adaptability—voltage, table size, lift height, load capacity, and loading direction are all customizable, and guardrail doors are available as an optional add-on. The installation process is simple, requiring minimal site conditions.

Key Benefits

Quiet Operation: The hydraulic motor works with little noise and no vibration, maintaining a calm workplace.
Simple Controls: Easy-to-grasp panels shorten onboarding and accelerate daily operations.
Customizable Sizes: Tailored widths, depths, and heights align with facility layouts and specific cargo requirements.
Long-Lasting Build: Top-quality alloys and protective coatings endure continuous heavy use, lessening maintenance frequency.
Eco-Friendly Performance: Improved hydraulic systems reduce energy consumption, lowering costs while boosting sustainable work processes.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements.

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11

Product Gallery

Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide.

We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
